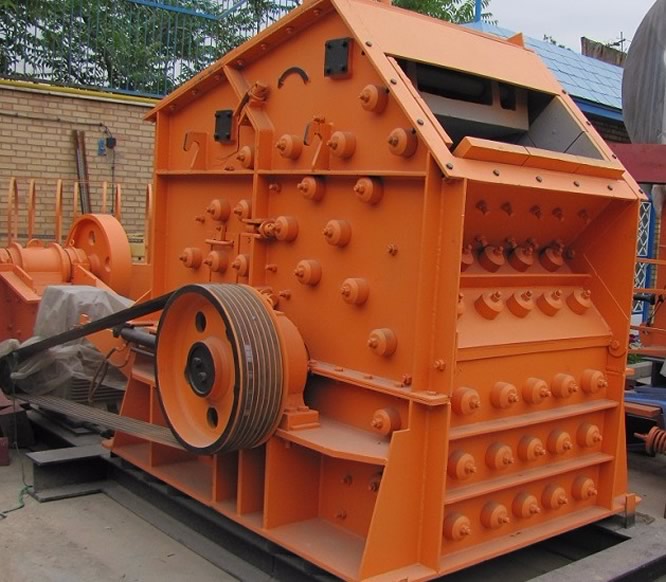

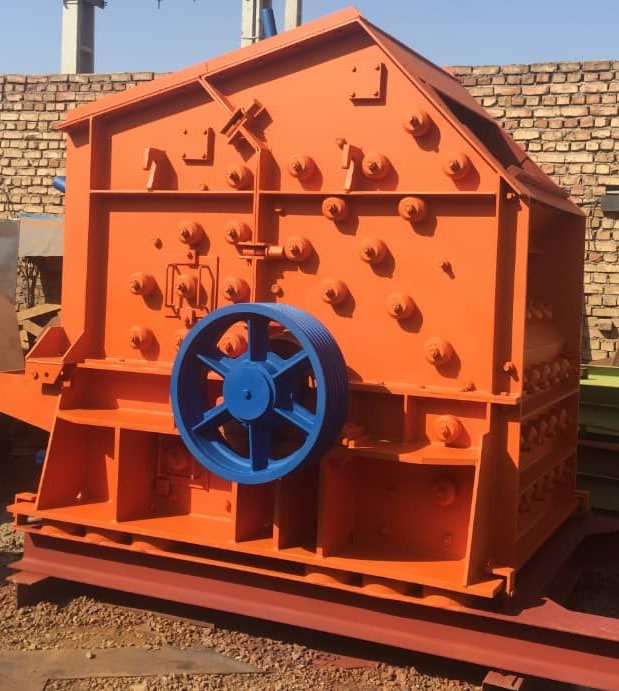

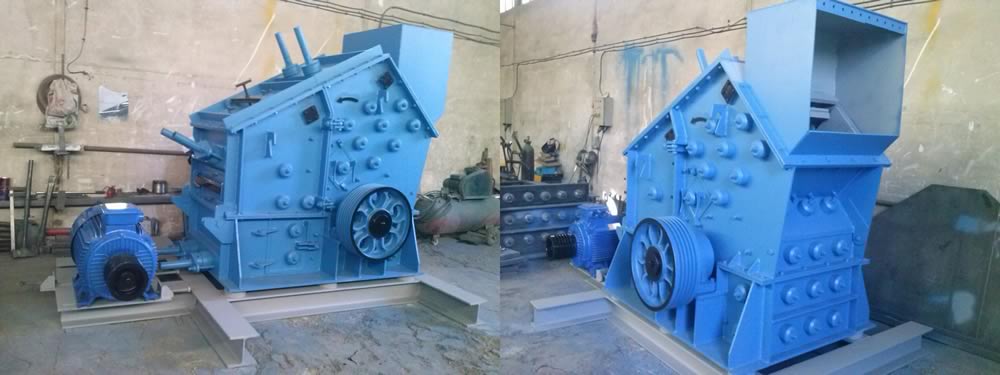

Hs Series 7 Crushers Pars Industrial Crusher Group is designed to break a variety of high-altitude rock and river rocks that are suitable for breaking rocks up to 250 mm in diameter.
This crusher is used as sandblasting because of the production of standard sand.
The advantages of these crusher
Excellent performance
Low depreciation
High capacity
Anti-wear inner cover
Interchangeable inner cover
Visiting valves

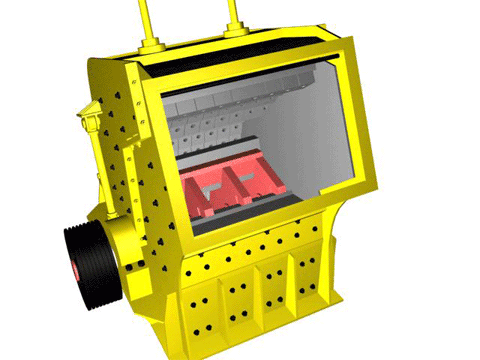

The HS10 Crusher, due to its structure, has high advantages in producing completely standard materials for asphalt and concrete applications. The power of the electric motor is 4 kW, which has a separate and adjustable chassis.
The device is rotated 2 rpm. It has 5 wear resistant manganese steel hammers each weighing 5kg, as well as 5 pieces for better and more secure hammers and 2 pieces as a mechanical barrier to prevent the hammers from leaving their seats.
Number of rotor blades; 2 blades of steel and 1 mm thick.
s
It is designed to break all types of high-altitude rock and river that is suitable for breaking rocks up to 2 mm in diameter.
Hs series 14 crushers Pars Industrial Crusher Group is designed to break all types of high hardness rock and river that is suitable for breaking rocks up to 300 mm in diameter.

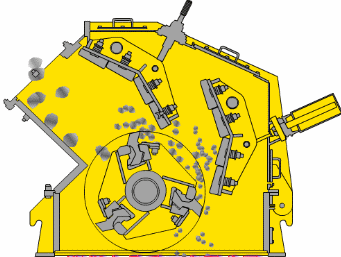

The impact crusher consists of a rotor having 2 to 6 blades rotating at high speed. The role of the blades is to throw the inlet parts toward the inner wall of the crusher. On the inner wall of the machine are also installed some shields of hardness. The incoming load fragments are shattered by the impact of these shields. The blades move at speeds of 15 to 50 meters per second, and the speed of the inbound parts when approaching the shields reaches about 1.6 times the blade speed. This crusher is used to crush minerals with a silica content of up to 5%.
