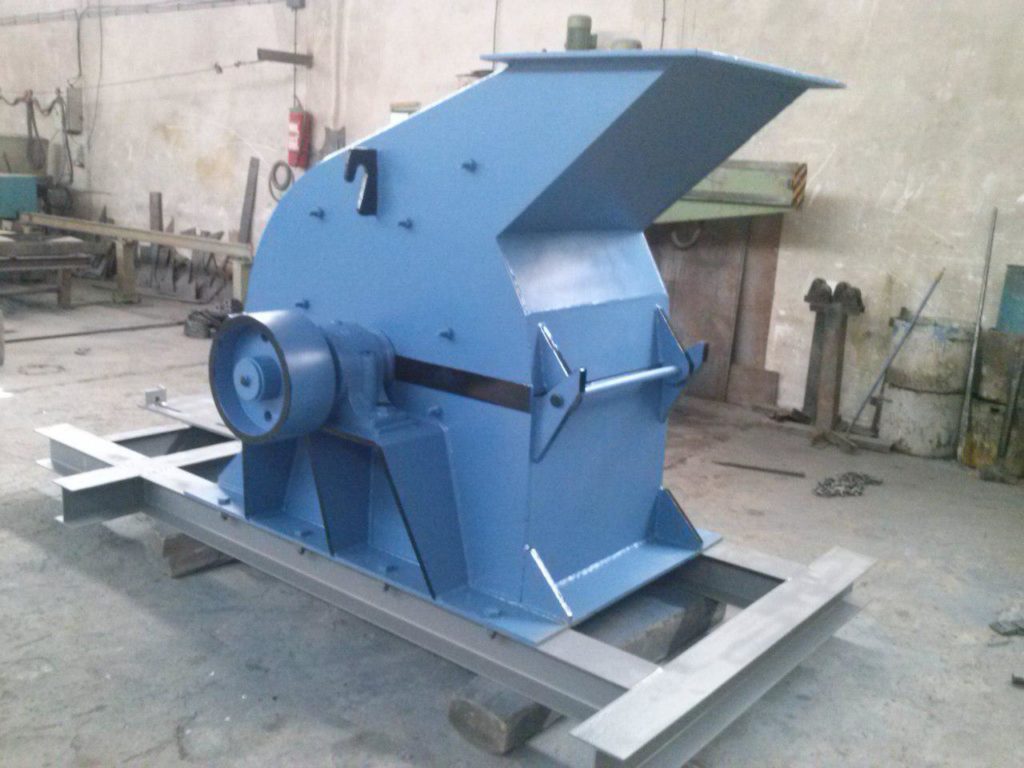

This hammer mill is used for the manufacture of micronized powders, stone powders, coke and fertilizer processing plants, as well as gypsum and lime industries, and is manufactured in 20, 24 and 30 types.
The powder mill is made up of an outer body and an assembled inner body if worn during high working time, with all the parts rotor-mounted. The main propulsion is driven by a shaft passing through the body. Each mill contains a number of removable plates with an assembled rotor that are responsible for crushing the material. Anti-wear plates are located between the poles that are connected to the central shaft by the belly button.
This mill is used in different sizes to produce powder up to 100 mesh for all types of minerals up to 4 mouse hardness and also used for hardness higher than anti-wear material. It is rigged and replaced. Due to the integrity of the mesh around the rotor of the mill, this machine produces low noise efficiency. A hammer mill or impact mill is a machine for crushing solids into smaller pieces. The hammers are the most important part of the mill and perform the rotation of the blade for crushing or flouring. The hammer mill is divided into different groups according to the driving force, product or mechanism. This mill is used to crush all kinds of minerals such as silica and carbonate. Bentonite. Feldspar .... and similar materials used after jaw milling This machine is manufactured in standard capacities of 5 to 30 tons per hour with anti-wear material.
It has feeder, vibrator, glen (to prevent dust from penetrating the bearing), feeding system, anti-wear materials and anti-shock ductile anchor. Replacement of the hammer and disc is easy and due to the specific design of the mill, it has the ability to service and deliver high efficiency. Gilsonite, Chinese, salt, brick and the like are used. This mill is used to crush high hardness materials with anti-wear material to extend the life of the body and rotor of the machine. In order to prevent dust from escaping from both sides of the output shaft, a sealing system has been used. In the new design, the hammer mill and even the disk can be easily replaced. Load output can be adjusted from 5 to 25 mm per order. The mill body is made of steel sheets 10 to 15 mm thick.
The number of steel hammers can be increased from 20 to 60 depending on the model of the machine and also according to customer's order
